Bad Map Sensor Symptoms: How to Diagnose and Fix

Map sensors, also known as manifold absolute pressure (MAP) sensors, play a crucial role in a vehicle's engine management system. They monitor the pressure in the intake manifold and relay this data to the Engine Control Unit (ECU). The ECU then uses this information to adjust fuel injection and ignition timing, ensuring optimal engine performance. When a map sensor goes bad, it can lead to a host of issues. Let's delve into the symptoms, diagnosis, and solutions for a faulty map sensor.

1. Role and Working Principle of a Map Sensor

The primary function of a map sensor is to measure the absolute pressure within the engine's intake manifold. This pressure measurement is vital because it reflects the amount of air entering the engine. As the engine operates, changes in throttle position, engine speed, and load cause fluctuations in intake manifold pressure.

The map sensor converts these pressure variations into an electrical signal. The ECU interprets this signal to determine the correct air-fuel ratio and ignition timing. For example, during acceleration, when the throttle opens wider, the intake manifold pressure changes, and the map sensor notifies the ECU to increase fuel injection for more power.

2. Common Symptoms of a Bad Map Sensor

Engine Power Loss

A faulty map sensor sends incorrect pressure data to the ECU. This misinformation causes the ECU to miscalculate the air-fuel mixture. If the mixture becomes too lean (not enough fuel) or too rich (too much fuel), the engine won't be able to generate sufficient power. You'll notice that the vehicle struggles to accelerate, even when you press the gas pedal firmly.

Rough Idle or Stalling

When the map sensor fails, the ECU can't maintain the proper air-fuel ratio at idle. This leads to an unstable idle speed, with the engine rpm fluctuating. In severe cases, the engine may stall completely when the vehicle is at a stop, such as at a traffic light.

Increased Fuel Consumption

Since the ECU relies on incorrect pressure readings from a bad map sensor, it might inject more fuel than necessary. This results in a significant increase in fuel consumption. You'll find that you're visiting the gas station more frequently, even if your driving habits haven't changed.

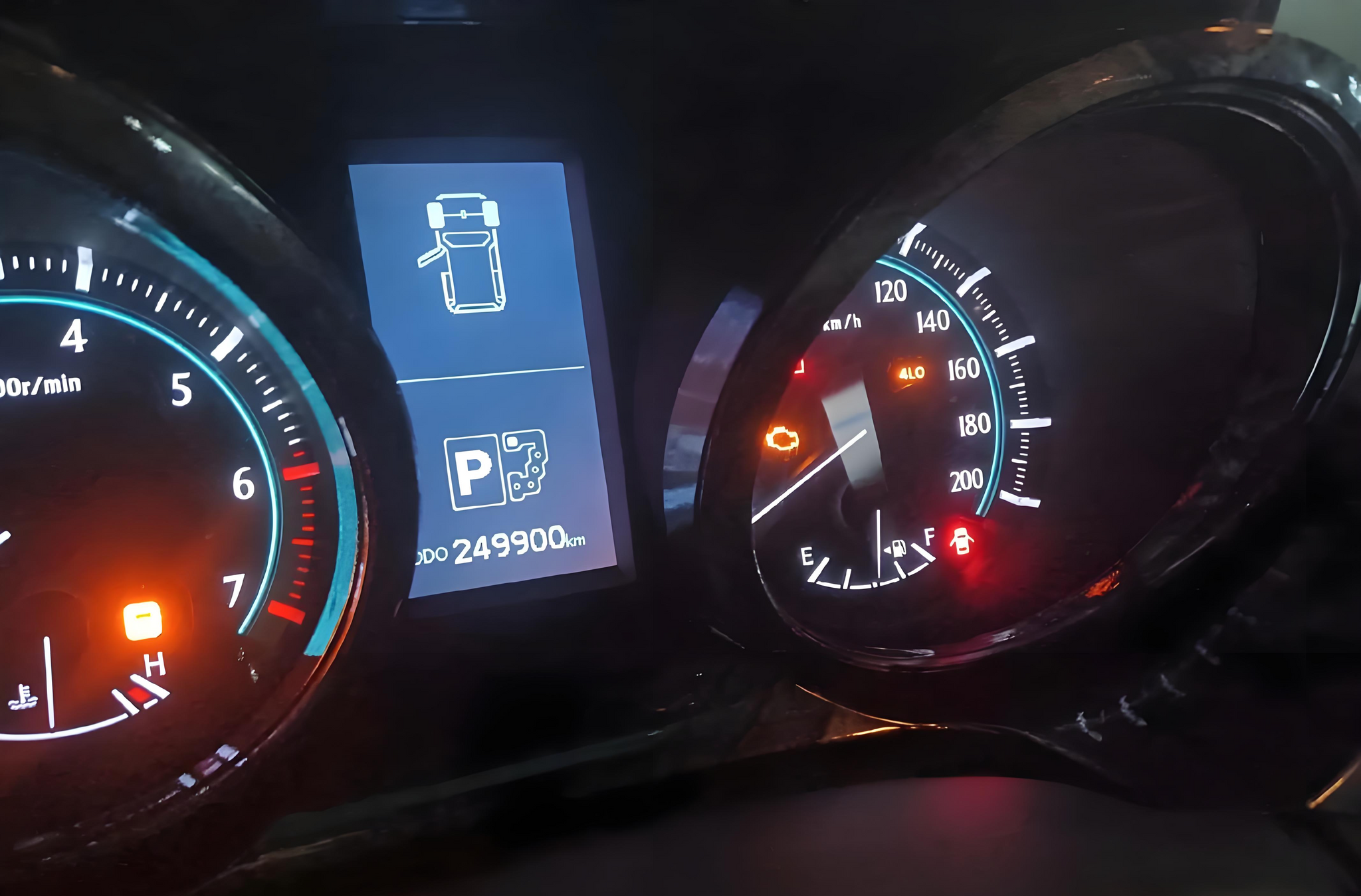

Illuminated Check Engine Light

The ECU constantly monitors the performance of various engine components, including the map sensor. When it detects an anomaly in the sensor's output, it triggers the check engine light on the dashboard. This is often one of the first signs that there's an issue with the map sensor.

3. How to Diagnose a Bad Map Sensor

Initial Observation

Start by checking if the check engine light is on. Then, pay attention to the engine's performance. If you notice power loss, rough idle, stalling, or increased fuel consumption, it's a strong indication that the map sensor might be faulty.

Professional Diagnostic Tool Testing

This is where a comprehensive OBD2 scan tool like the VD80 BT comes into play.

• Reading Trouble Codes: Connect the VD80 BT to the vehicle's OBD2 port. It can quickly read and display trouble codes related to the map sensor. These codes provide specific information about the nature of the fault.
• Reading Live Data: The VD80 BT allows you to access real-time data from the map sensor. You can check if the pressure readings are within the manufacturer's specified range. Abnormal data values can confirm a faulty sensor.
• Actuation Tests: Some advanced functions of the VD80 BT enable actuation tests, which can further assist in determining if the map sensor is functioning correctly by simulating various operating conditions.
  Throttle Matching: If the throttle has been cleaned or replaced before, failure to perform matching will cause the ECU to misjudge the idle opening, leading to unstable speed—symptoms that can be confused with a faulty MAP sensor. Using the VD80 BT to execute "throttle matching" allows the ECU to relearn the idle reference, eliminating interference from this factor.
  Injector Coding: Failure to code the fuel injectors after replacement can affect fuel injection consistency and cause idle vibration, which is similar to some symptoms caused by a bad MAP sensor. Coding the fuel injectors via the VD80 BT ensures uniform fuel injection, helping to check whether non-sensor issues cause the engine abnormality.

4. Solutions for a Bad Map Sensor

Cleaning the Sensor

If the map sensor is only slightly contaminated with oil or dust, you can try cleaning it. Carefully remove the sensor from the intake manifold. Use a specialized electronics cleaner to spray the sensor element. Let it dry completely before reinstalling it. Then, test the engine to see if the symptoms have improved.

Replacing the Sensor

If the diagnosis confirms that the map sensor is damaged beyond repair, replacement is necessary. Choose a sensor that matches the vehicle's make and model. After installing the new sensor, use the VD80 BT again:

• Full System Diagnosis: Perform a full system check to ensure other engine components are in good condition.
• Clearing Trouble Codes: Use the VD80 BT to clear the trouble codes related to the old faulty sensor, which will turn off the check engine light if no other issues exist.

5. Tips to Prevent Map Sensor Failure

Regular Engine System Inspection and Maintenance

Utilize tools like the VD80 BT for regular full-system diagnostics. This helps in detecting potential problems with the map sensor or other engine parts early, before they escalate into major issues.

Pay Attention to Fuel Quality

Using high-quality fuel can reduce the formation of carbon deposits in the engine. Excessive carbon buildup can indirectly affect the map sensor's performance over time.

Avoid Engine Water Ingress

Take precautions to prevent water from entering the engine, as water damage can cause the map sensor to fail. For example, be cautious when driving through deep puddles.

In conclusion, a bad map sensor can disrupt your vehicle's performance, but with the right knowledge and tools like the VD80 BT, you can diagnose and address the problem effectively. Regular maintenance and prompt attention to symptoms will keep your engine running smoothly.
